Aerial/FTTH/KU & Burial/UG Services
- APD (As Plan Drawing)
- Site survey to clustering the area for Home Pass (HP) and creating KMZ report
- Digging the land to plant pole and accessories
- Planting the pole
- Accessories FTTH Installation
- Technical Part: Jointing, Splicing
- ABD (As Build Drawing)
Outside Plant (OSP)
- installation, pulling the cables underground, splicing (connecting), testing connections, and maintenance to ensure optimal network function.
- Network design planning access and backbone network
- Installation of cable, equipment’s and accessories
- Duct and cable Installation
- SITAC for OSP: permitting to local government and building Management
- Manpower and resourcing for digging and FO installation
We always ready to implement the GPON (Gigabit Passive Optical Network) Projects, which is an FTTx-based technology, which can be: FTTH (Fiber to the Home), consisting of ONT (Optical Network Terminal), OLT, (Optical Network Terminal), ONU (Optical Network Unit), and IP Phone Unit

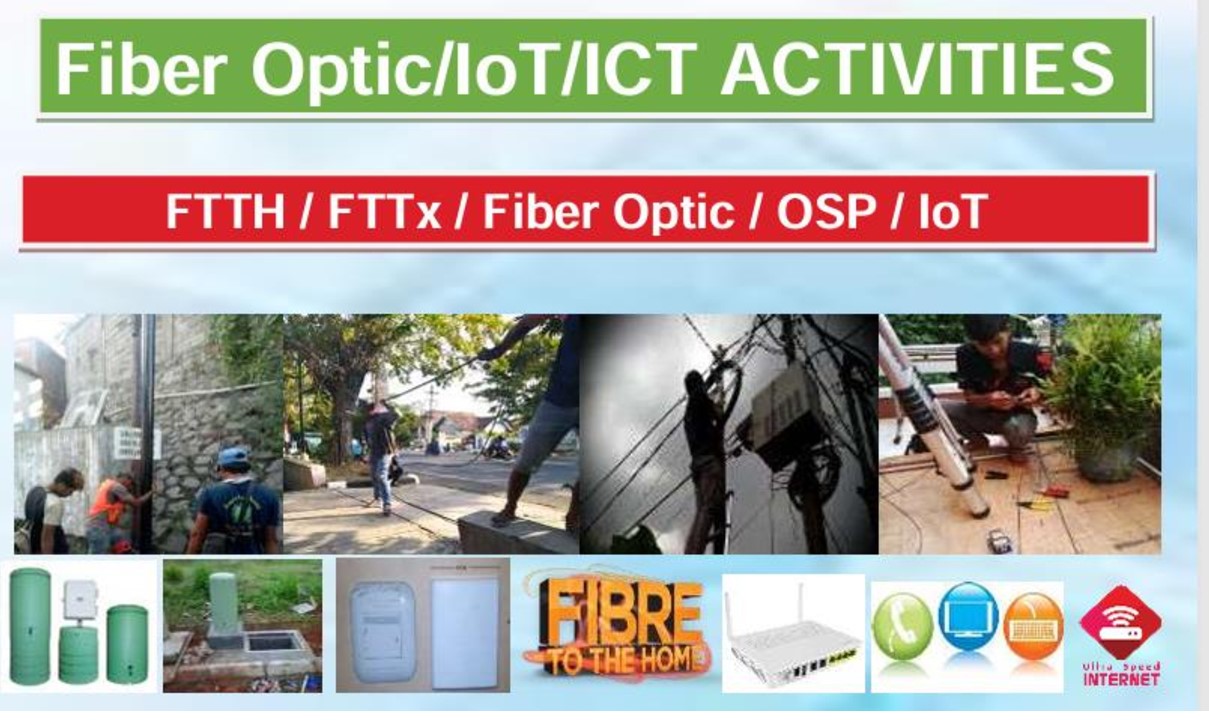

Our Fiber Optic/Outside Plant (OSP) ISP/FTTH/FTTx Services are:
• Site Survey and site design (S&D) for FTTH, creating KMZ (Off line Map), APD & ABD
• Site Acquisition (SITAC) and Permitting for FTTH & OSP
• Civil, Mechanical, Electrical (CME) implementation for FTTH – Aerial, Burial & UG

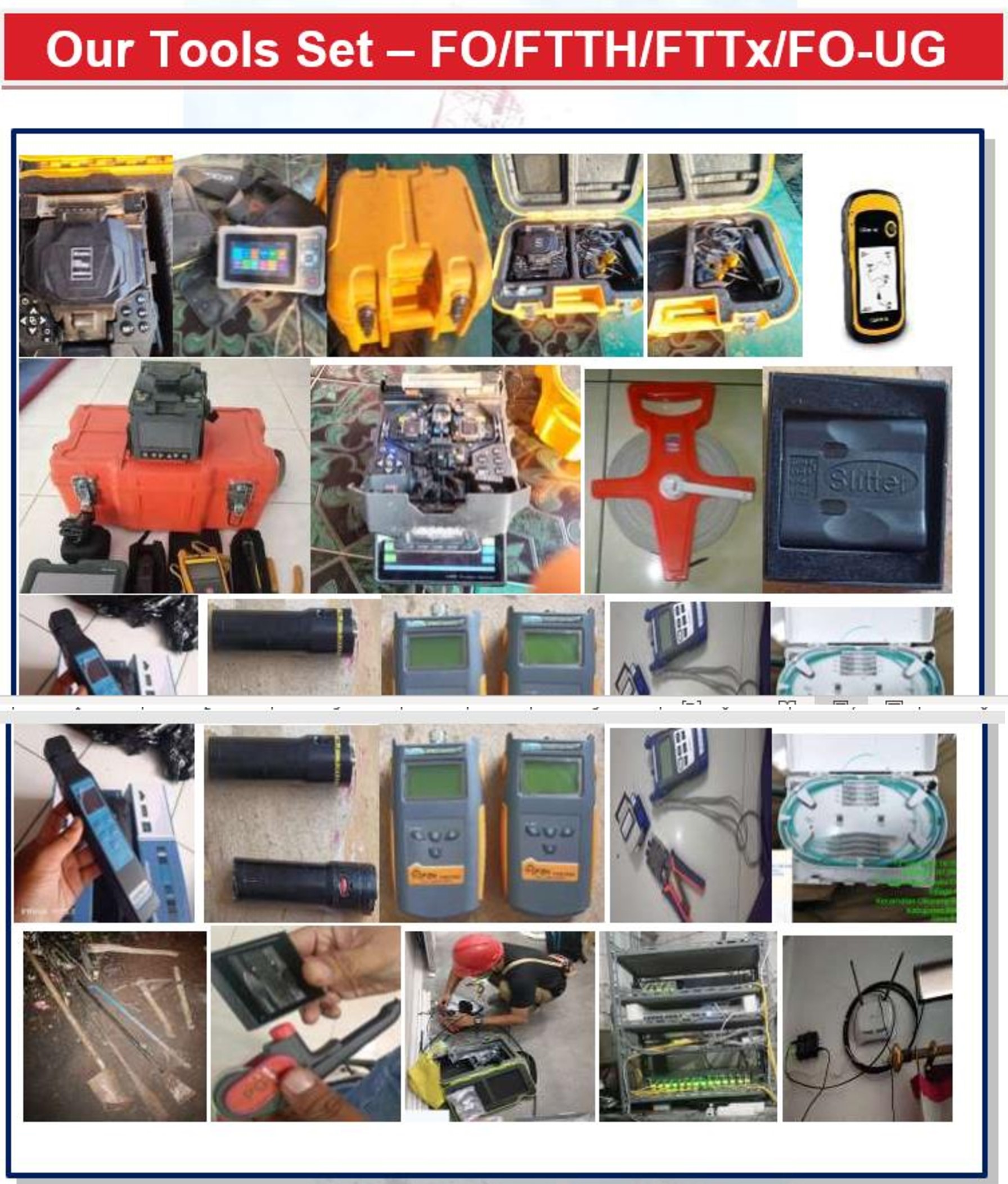

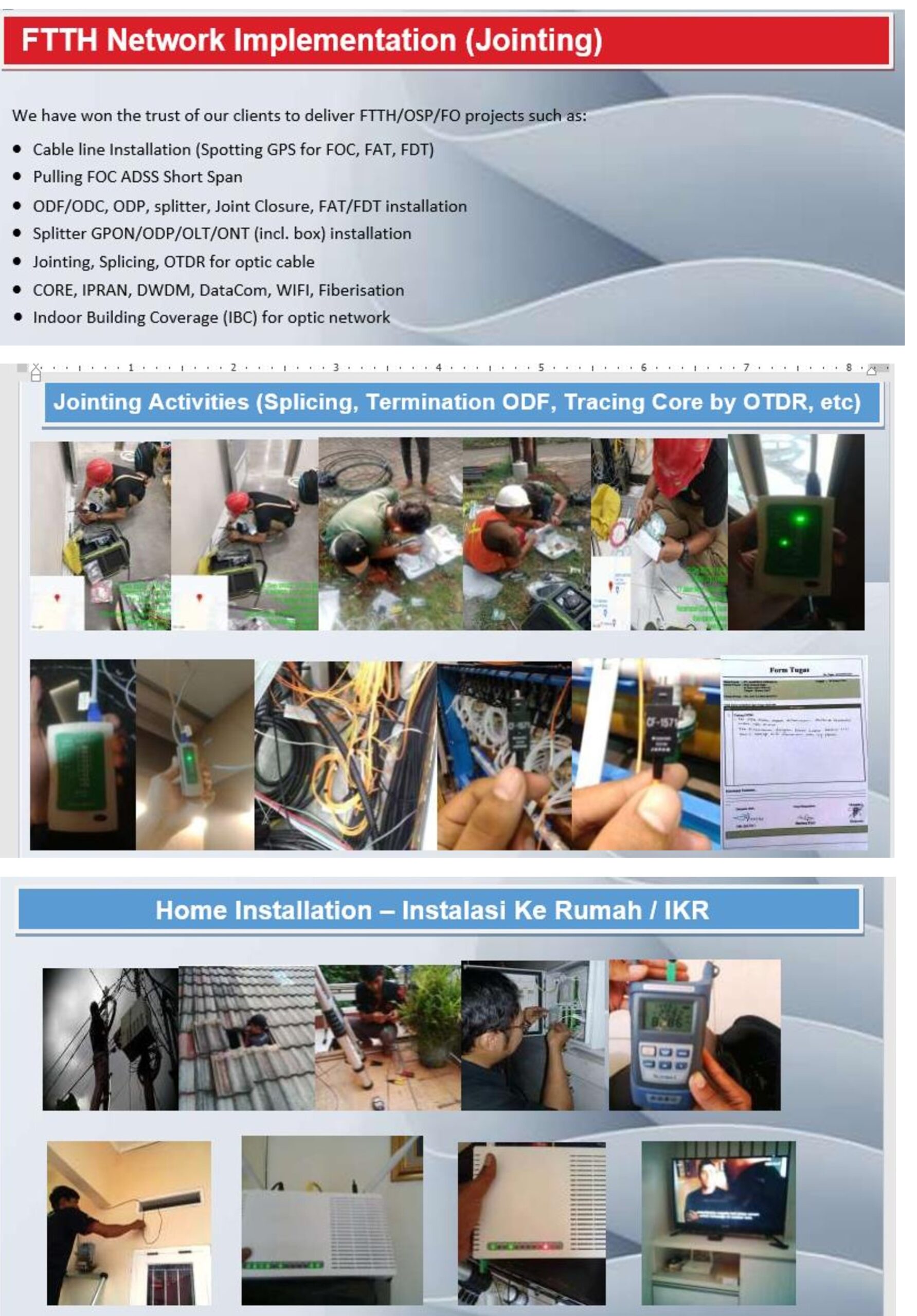

• Implementation: Jointing, OTDR, Splicing, Installation FTTH module, Pigtail Installation, splicer installation
and splicing services, Backbone Fiber Optic Cable (FOC), Fiber Optic Metro to create P2P and PON FTTH
networks, producing the required design, documentation for deployment and maintenance.

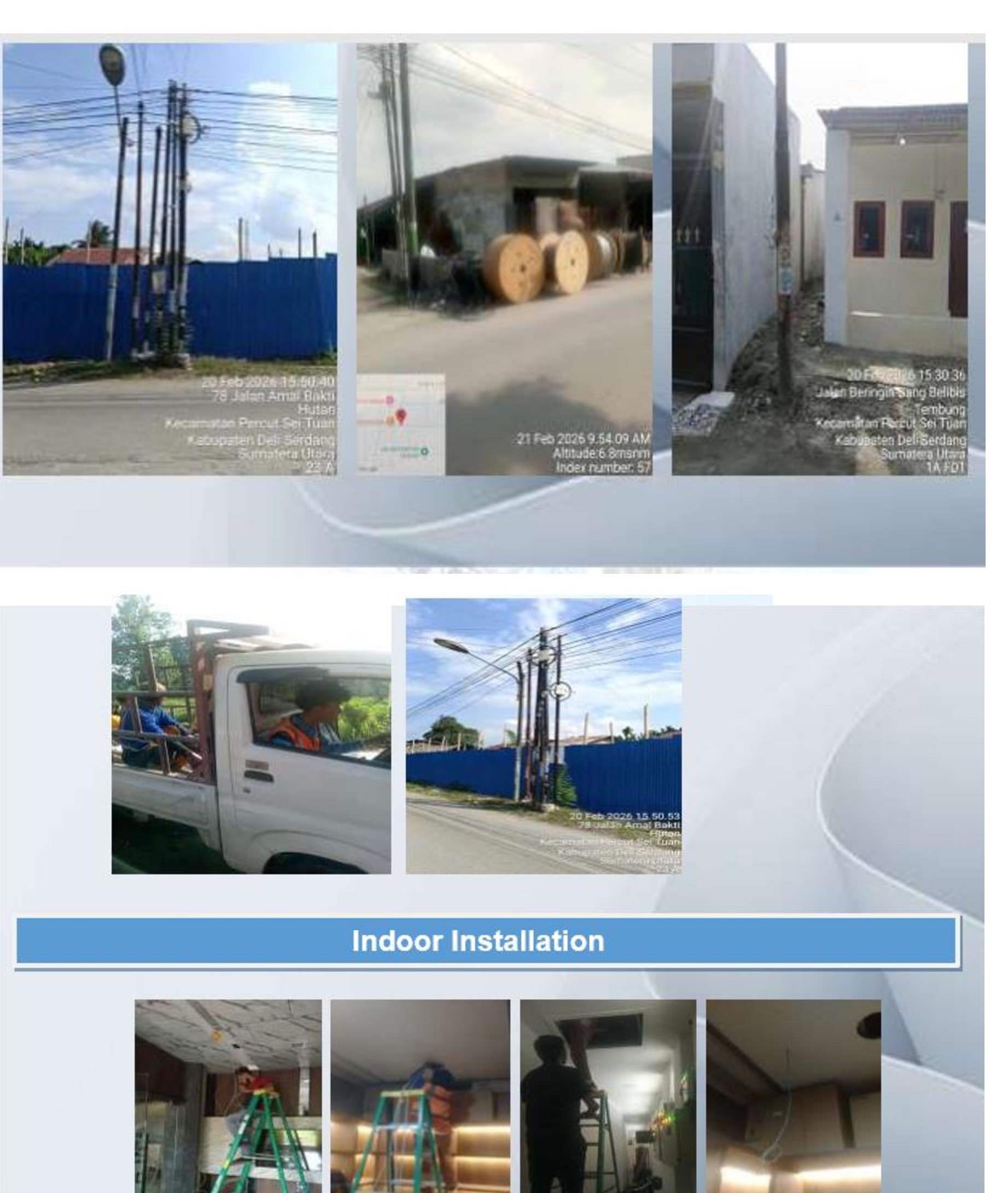

• Installation to the Home (IKR) or Installation to the Unit (IKU) at apartment or condominiums
• Automated planning and documentation of FTTH networks from rough planning to the preparation of
construction documents and work orders, including detailed specifications of costs for individual building
projects.
With our experience and supported by the expert and professional teams, we always ready deliver the best
result for FTTH/FO projects based on job and SoW given to us
We have professional team to handling Survey and design for FTTH/OSP tasks to help maximize performance from network infrastructure, and can be maximize the company profit and help the operator CAPEX keep maintained. Our service includes:
- Pre-survey, planning of cable routes, which will, determine the cabling technique to be used, as well as tooling requirements.
- Splice Location, selecting the splice area allows in the verification of the transmission chart and making estimates for the length of the cable sequence, ensuring that the places that may not be located on the website where entry is inconvenient or dangerous.

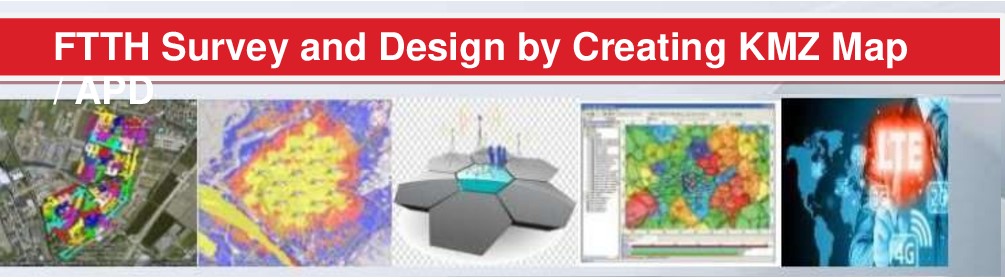

- Technical Site Survey & Design for FTTH, by using google earth to produce APD and KMZ (Off line Map) to define and make estimation the number of pole/Home Pass (HP, Site Survey includes Design (S&D) and mapping number of pol/Home pass ID for FTTH Networks
- Cable line survey, Indoor Building Coverage Survey
- To Produce As Planed Drawing (APD), As Build Drawing (ABD) and all (CME) documentation, Network Performance Analysis
Handling Site Acquisition activities (Sitac) and Permitting for FTTH for Aerial, Burial & UG network
- To do Site Investigation Survey (SIS) by find area/cluster designed based on KMZ/APD
- To do negotiation all SITAC and Permit issue, like donation to Local government and other parties, by meet and approach the building owner or local government people RT/RW/Lurah/Camat/Mass Organization (Ormas), Community Relation at housing area, village areas, apartment, real estate, High Rise Building for negotiation lease price and Donation compensation
- Getting Permit/recommendation or access and all documentation required to setting up the OSP/FTTH networks for Aerial and Cable route and also for Burial & UG clustering network for access permission from all interested parties
We also experienced in working on CME (Civil. Mechanical, Electrical) for both FTTH networks Aerial and Burial with a special scope of works such as:

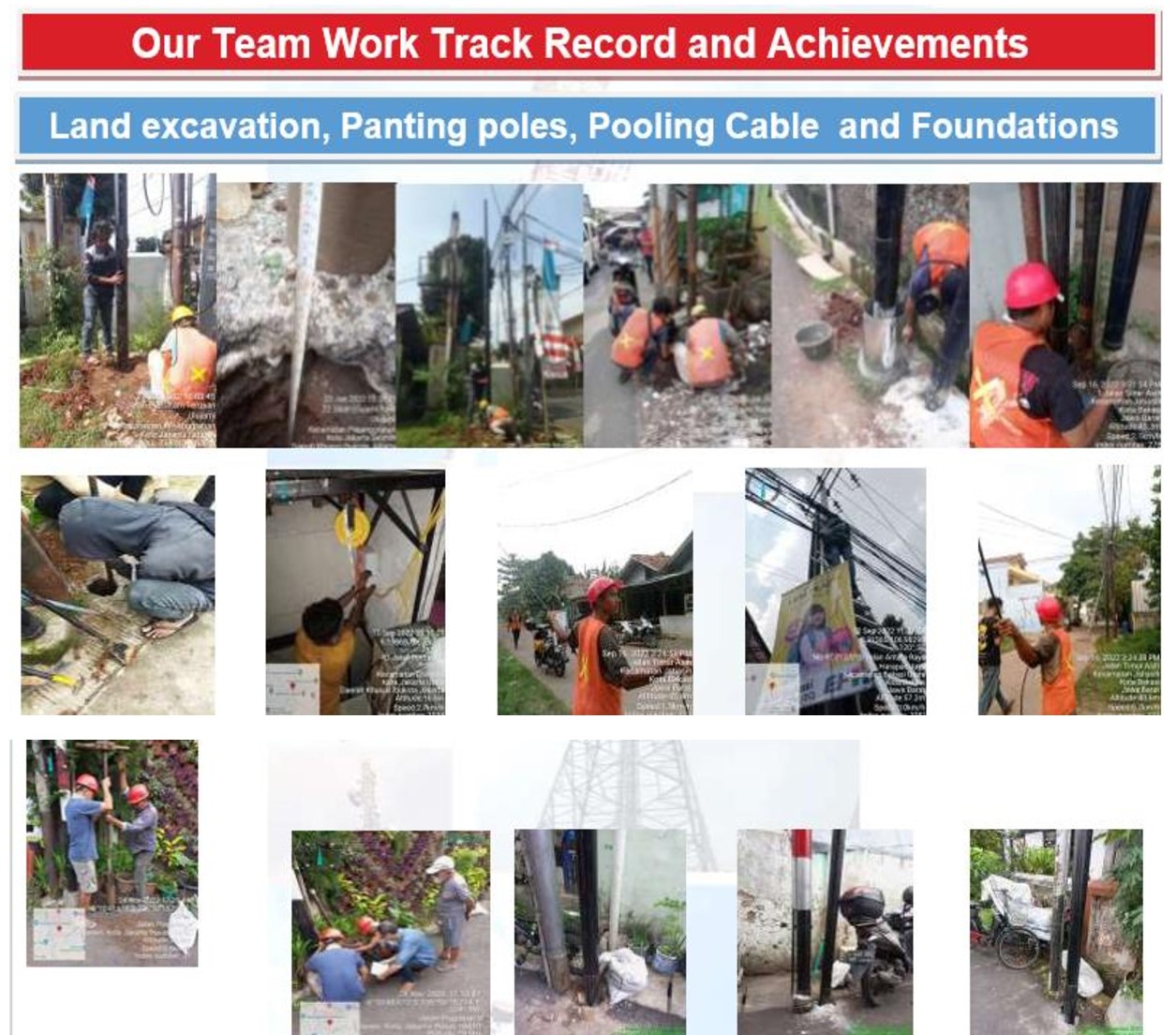

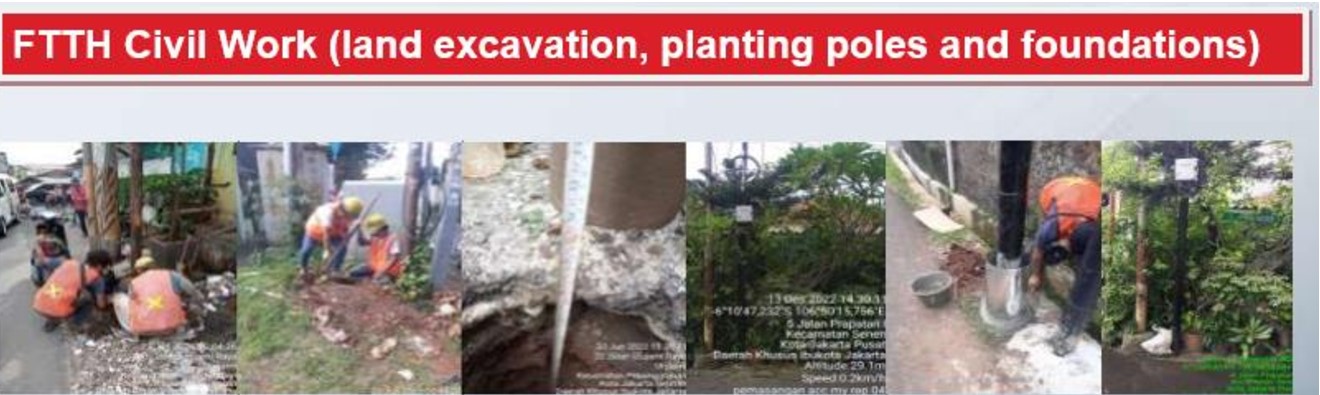

- Mapping Pole area placement based on KMZ/APD · Site clearance, Land excavation
- Pole planting and casting, Pole foundation with concrete

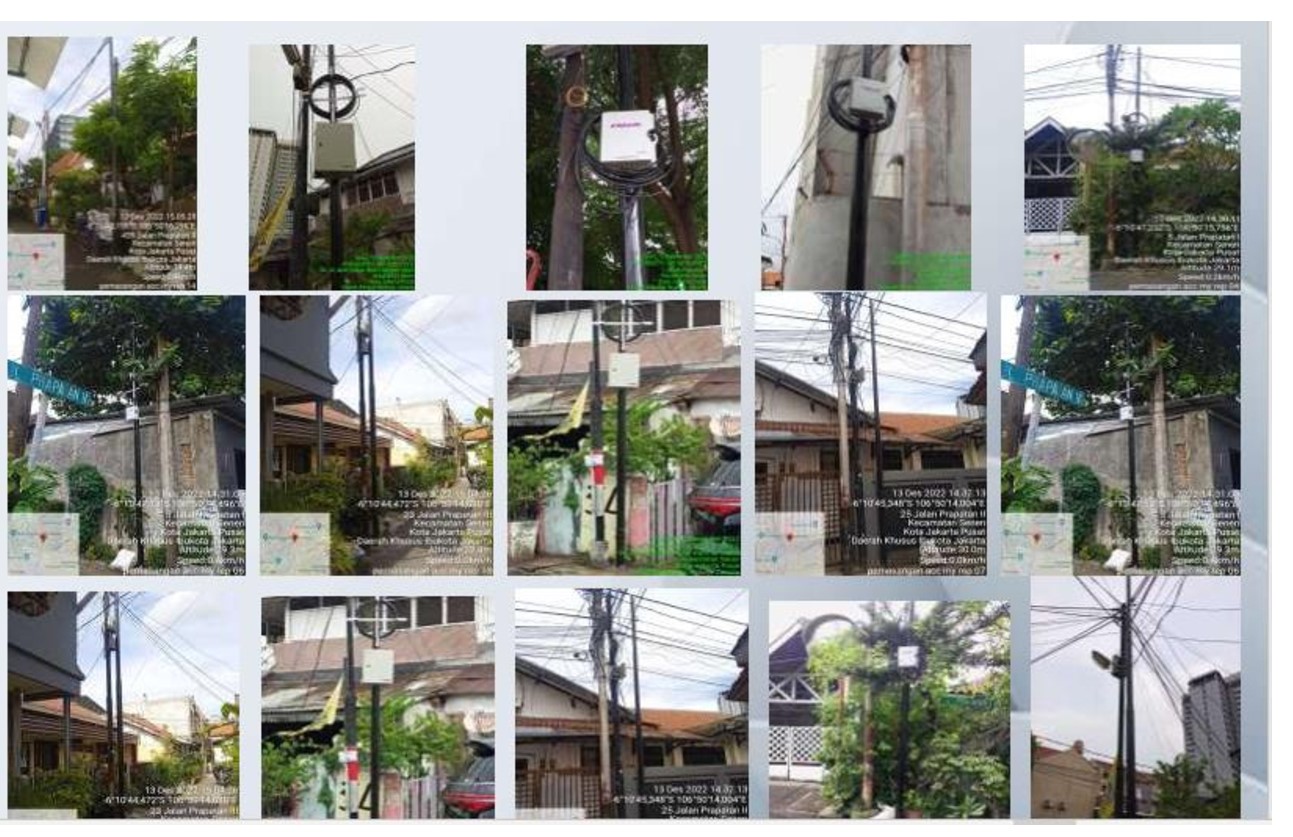

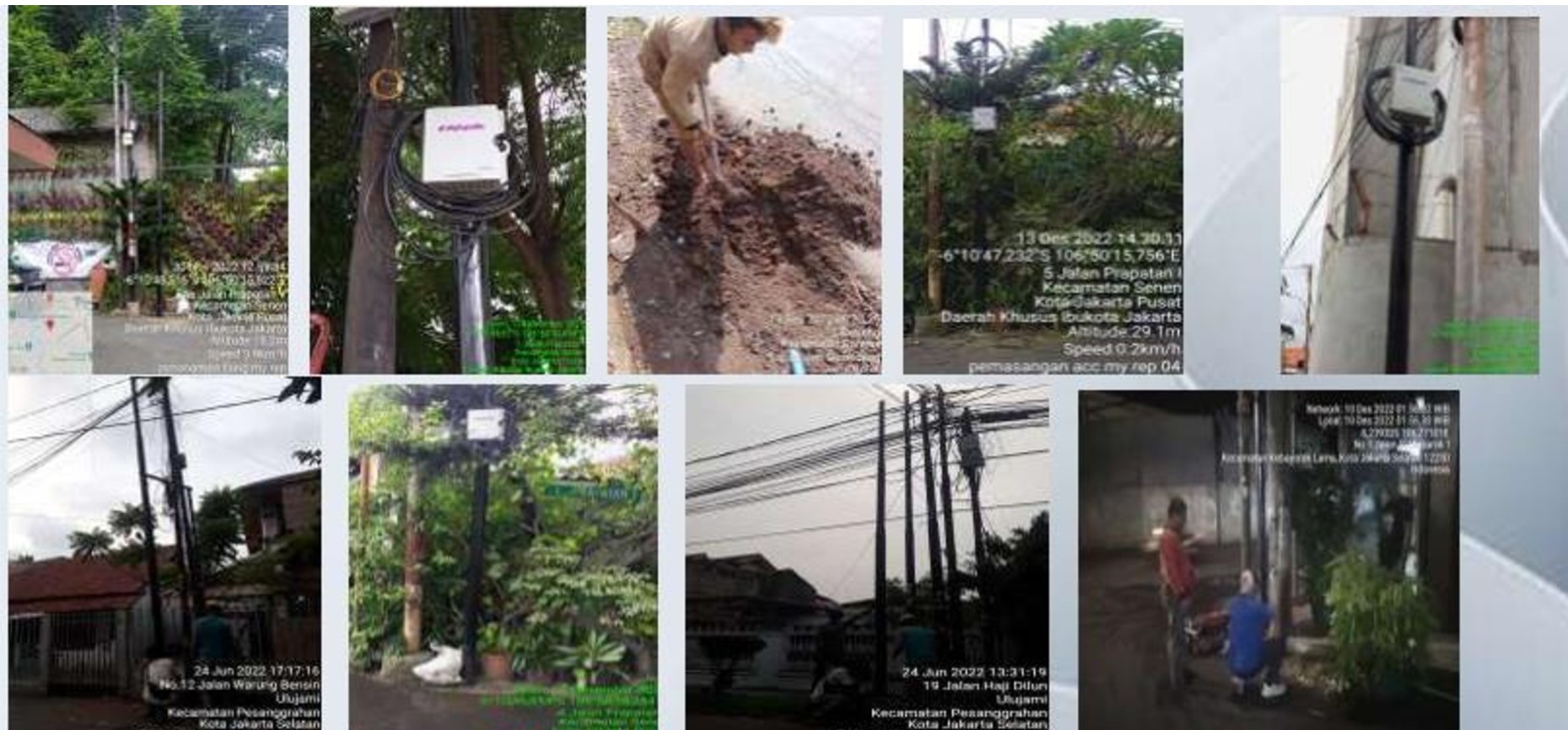

- FTTH aerial cable (Kabel Udara/KU) slack hanger and accessories installation · Puling optical cable and casting implementation for Aerial network
- Marking the pole based on the standard color · Land digging for burial network
- ONT, OLT/ODT, ODF/ODC, ODP foundation, cable tray, ducting/sub-Duct installation
- Under Ground (UG) Installation
Hand hole installation for burial network and other FTTH equipment’s installation, CME implementation works for FTTH/WAN/Datacom equipment’s, Power / PLN Permit from AKLI (Indonesian Electrical & Mechanical Contractors Association) service for New and additional power (if required), As Planed Drawing (APD), As Build Drawing (ABD) and all (CME) documentation
